LED Troffer Fixtures

LED Troffer Fixtures in an office Diagram of LED Troffer Fixtures

The Emium Troffer is an ideal replacement for 2x2 and 2x4 fluorescent troffers.

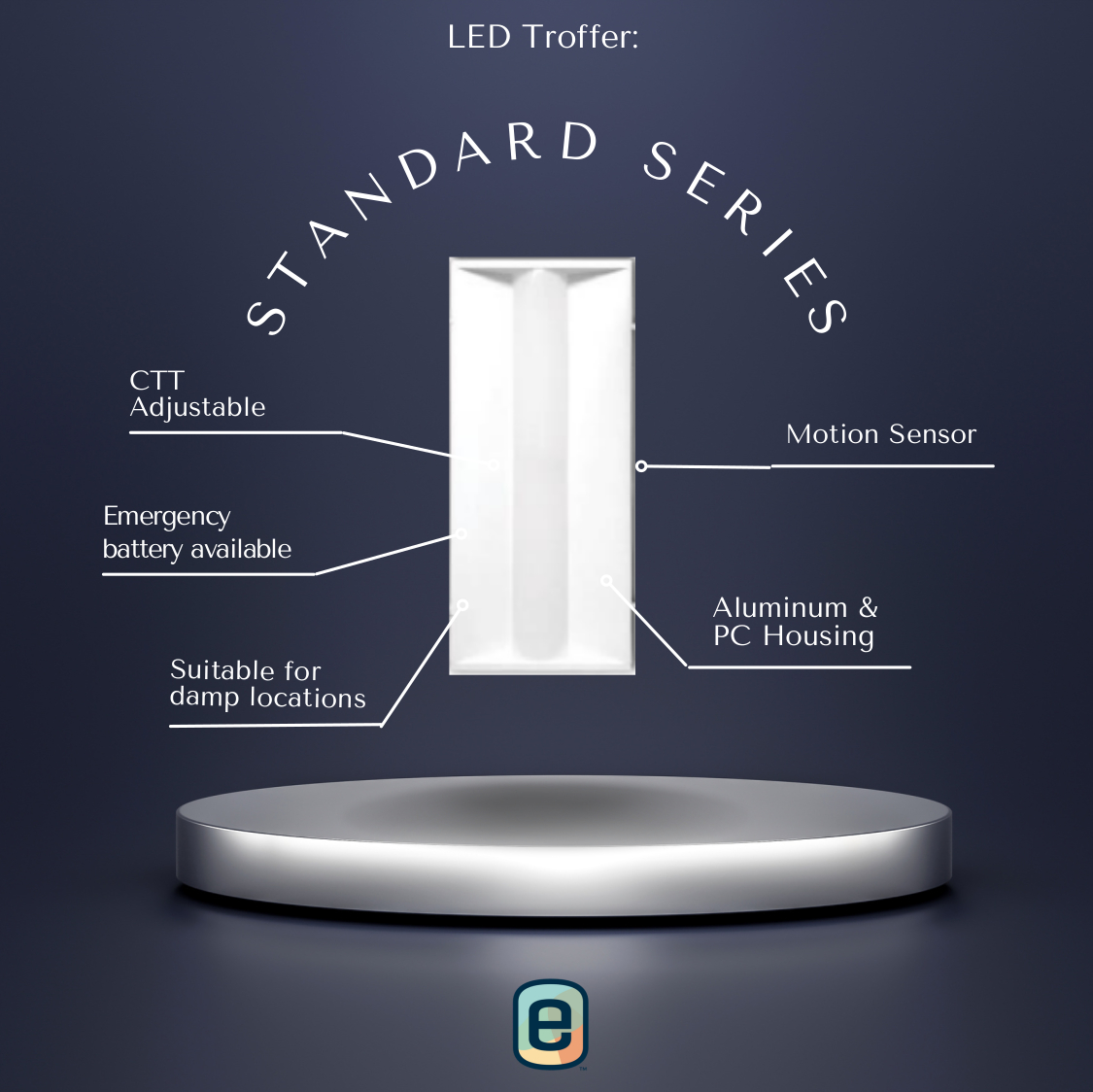

LED Troffer Fixture

The troffers are designed to lay in drop ceilings in offices, schools, showrooms, airports, retail locations, and healthcare facilities.

They provide an ultra-modern look and perform at an industry leading 130 lumens per watt.

  • Quick five minute installation
  • External UL Listed Class-2 Constant Current Driver
  • Suitable for damp locations
  • Minimize labor and recycling costs
  • Ease of installation and maintenance
  • 0-10V dimming
  • 5 Year Manufacturer’s Warranty
  • Emergency Battery option available
  • 50,000 Hour Life Rating

Specifications

Model EL-TR-2X2-36W EL-TR-2X4-50W
Troffer Size 2' x 2' 2' x 4'
Power Consumption 15W, 26W, 36W, 40W (Selectable) 25W, 36W, 40W, 50W (Selectable)
Lumen Output 135 lm/w
Beam Angle 120°
Input Voltage 100-277VAC
Color Temp Installer Adjustable - 3500K, 4000K, 5000K
CRI >80
Housing Material Aluminum and PMMA
Dimmable Yes (0-10 volt)
Emerency Backup Yes, Optional
Rated Life More than 50,000 hrs
Warranty 5 years

Download Catalog Sheet » Installation Instructions »
