Low Profile Linear LED High Bay

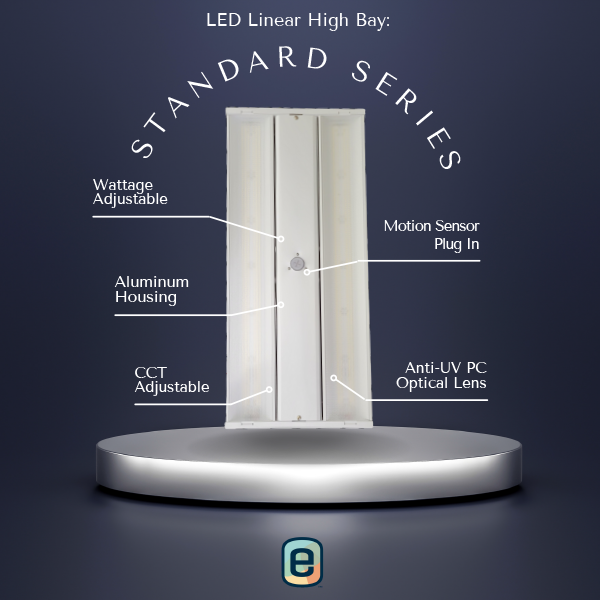

Low Profile Linear LED High Bay Light Fixture

The LED Linear High Bay is a low profile, new fixture replacement solution for metal halide or fluorescent linear high bays in commercial buildings, factories, warehouses, retail, etc.

Features:

  • 130 Lumens per watt Dimmable
  • Suitable for damp locations
  • Reduce energy consumption up to 60%
  • Slim profile
  • 5 Year Warranty
  • Aluminum & plastic housing

Specifications

Model EL-ZY-H2-80W EL-ZY-H5-100W EL-ZY-H5-160W EL-ZY-H3-160W EL-ZY-H6-220W EL-ZY-H6-320W
Power (watts) 80 100 160 160 220 320
Lumen Output 10,400 13,000 20,800 20,800 28,600 41,600
Color Temp 5000K standard (4000K color temp available upon request)
Input Voltage 100-277VAC or 480VAC
Operating Temperature -22°F to 113°F
Length
Width
Depth
23.6"
8.5"
2.1"
23.6"
13.2"
2.1"
23.6"
13.2"
2.1"
47.2"
8.5"
2.1"
47.2"
13.2"
2.1"
47.2"
13.2"
2.1"
Dimmable Yes 0 - 10V
CRI > 83 Ra
Options Motion sensor and emergency back up system
Mounting Surface mount, Pendant mount Cable or chain suspension (with v-clips for dual point)
Rated Life 50,000 hrs.
