Exterior Lighting

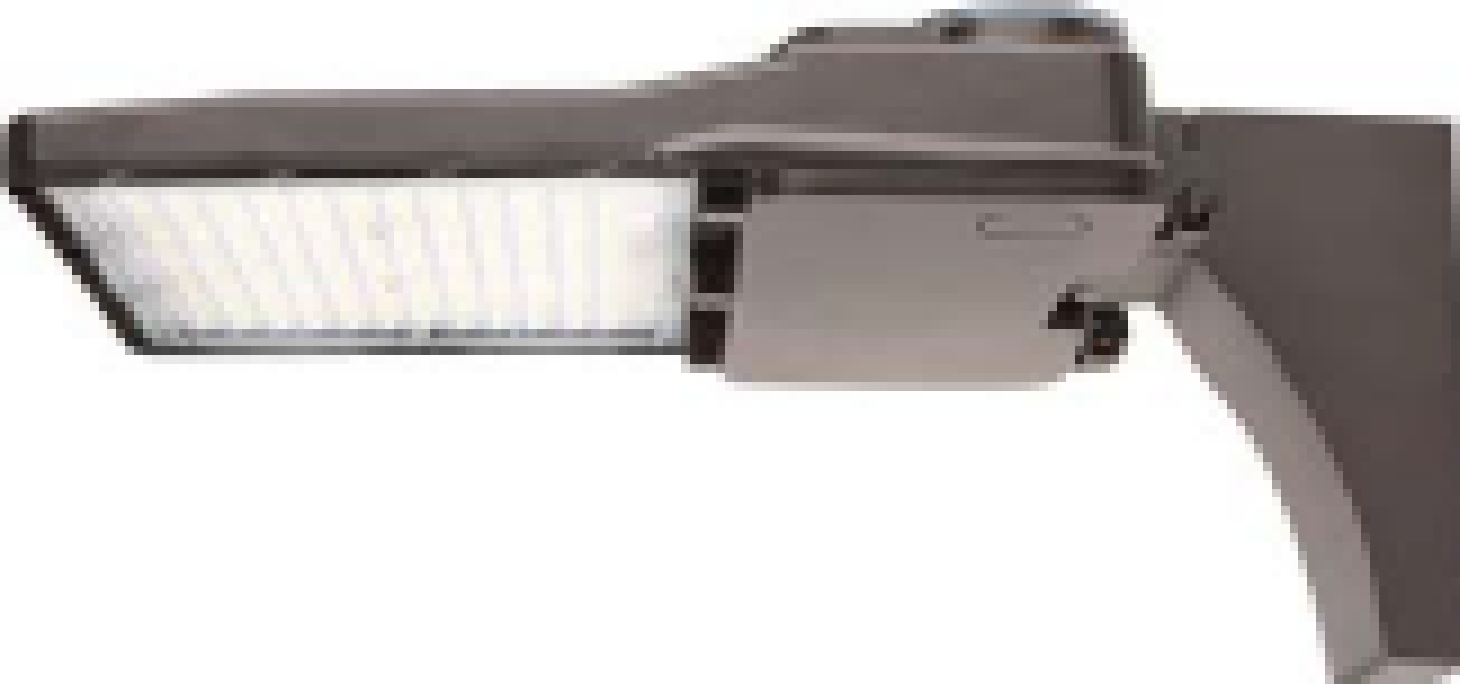

LED Area Lights: Standard Series
LED Area Light
Model Number: EL-MS-SL05-100W27VXXKD T3
Size: 15.94"x9.25"x6.97"
Wattage: 100
Color Temp (CCT): 4000K, 5000K
Input Voltage: 120-277VAC
CRI: >80
Lumens: 13,400
Comments: Replace XX with your preferred CCT
Model Number: EL-MS-SL-105W27V50KSG T5
Size: 24"x12.9"
Wattage: 105
Color Temp (CCT): 5000K
Input Voltage: 120-277VAC
CRI: >80
Lumens: 13,400
Model Number: EL-MS-SL-105W27V50KWPC T5
Size: 24"x12.9"
Wattage: 105
Color Temp (CCT): 5000K
Input Voltage: 120-277VAC
CRI: >80
Lumens: 13,400
Model Number: EL-MS-SL-110W48V50KB T5
Size: 24"x12.9"
Wattage: 110
Color Temp (CCT): 5000K
Input Voltage: 347 - 480VAC
CRI: >80
Lumens: 13,400
Model Number: EL-MS-SL-110W48V50KD T5
Size: 24"x12.9"
Wattage: 110
Color Temp (CCT): 5000K
Input Voltage: 347 - 480VAC
CRI: >80
Lumens: 13,400
Model Number: EL-MS-SL05-150W27VXXKD T3
Size: 24"x12.9"
Wattage: 150
Color Temp (CCT): 4000K, 5000K
Input Voltage: 120-277VAC
CRI: >80
Lumens: 21,000
Model Number: EL-MS-SL-150W27V30KD T5
Size: 24"x12.9"
Wattage: 150
Color Temp (CCT): 3000K
Input Voltage: 120-277VAC
CRI: >80
Lumens: 21,000
Model Number: EL-MS-SL-150W27V50KW T5
Size: 24"x12.9"
Wattage: 150
Color Temp (CCT): 5000K
Input Voltage: 120-277VAC
CRI: >80
Lumens: 21,000
Model Number: EL-MS-SL-200W27V50KD T5
Size: 24"x12.9"
Wattage: 200
Color Temp (CCT): 5000K
Input Voltage: 120-277VAC
CRI: >80
Lumens: 27,000
Model Number: EL-MS-SL-200W27V50KW T5
Size: 24"x12.9"
Wattage: 200
Color Temp (CCT): 5000K
Input Voltage: 120-277VAC
CRI: >80
Lumens: 27,000
Model Number: EL-MS-SL-200W48V50KD T5
Size: 24"x12.9"
Wattage: 200
Color Temp (CCT): 5000K
Input Voltage: 347 - 480VAC
CRI: >80
Lumens: 27,000
Model Number: EL-MS-SL-300W27V50KB T5
Size: 33.5"x13.4"
Wattage: 300
Color Temp (CCT): 5000K
Input Voltage: 120-277VAC
CRI: >80
Lumens: 42,000
Model Number: EL-MS-SL-300W27V50KW T5
Size: 33.5"x13.4"
Wattage: 300
Color Temp (CCT): 5000K
Input Voltage: 120-277VAC
CRI: >80
Lumens: 42,000
Model Number: EL-MS-SL-300W48V50KD T5
Size: 33.5"x13.4"
Wattage: 300
Color Temp (CCT): 5000K
Input Voltage: 347 - 480VAC
CRI: >80
Lumens: 42,000
Model Number: EL-MS-SL-70W27V50KD T5
Size: 24"x12.9"
Wattage: 70
Color Temp (CCT): 5000K
Input Voltage: 120-277VAC
CRI: >80
Lumens: 9,000
Model Number: EL-MS-SL-70W27V50KW T5
Size: 24"x12.9"
Wattage: 70
Color Temp (CCT): 5000K
Input Voltage: 120-277VAC
CRI: >80
Lumens: 9,000
Model Number: EL-MS-SL04-70W27V40KB T3
Size: 24"x12.9"
Wattage: 70
Color Temp (CCT): 4000K
Input Voltage: 120-277VAC
CRI: >80
Lumens: 9,000
Model Number: EL-MS-SL04-70W27V50KB T3
Size: 24"x12.9"
Wattage: 70
Color Temp (CCT): 5000K
Input Voltage: 120-277VAC
CRI: >80
Lumens: 9,000
Model Number: EL-MS-SL04-70W27V50KD T5
Size: 24"x12.9"
Wattage: 70
Color Temp (CCT): 5000K
Input Voltage: 120-277VAC
CRI: >80
Lumens: 9,000
Model Number: EL-MS-SL05-100W27V40KD T3
Size: 24"x12.9"
Wattage: 100
Color Temp (CCT): 4000K
Input Voltage: 120-277VAC
CRI: >80
Lumens: 13,400
Model Number: EL-MS-SL06-150W27V50KD T3
Size: 24"x12.9"
Wattage: 150
Color Temp (CCT): 5000K
Input Voltage: 120-277VAC
CRI: >80
Lumens: 21,000
Model Number: EL-MS-SL06-150W48V50KD T5
Size: 24"x12.9"
Wattage: 150
Color Temp (CCT): 5000K
Input Voltage: 347 - 480VAC
CRI: >80
Lumens: 21,000
Model Number: EL-MS-SL06-200W27V30KB T3
Size: 24"x12.9"
Wattage: 200
Color Temp (CCT): 3000K
Input Voltage: 120-277VAC
CRI: >80
Lumens: 27,000
Model Number: EL-MS-SL06-240W27V50KD T3
Size: 33.5"x13.4"
Wattage: 240
Color Temp (CCT): 5000K
Input Voltage: 120-277VAC
CRI: >80
Lumens: 27,000
Model Number: EL-MS-SL06-350W27V50KD T4
Size: 33.5"x13.4"
Wattage: 350
Color Temp (CCT): 5000K
Input Voltage: 120-277VAC
CRI: >80
Lumens: 52,500
Model Number: EL-MS-SL05-250W27VXXKD T3
Size: 26.6"x12.25"x6.97"
Wattage: 250
Color Temp (CCT): 4000K, 5000K
Input Voltage: 120-277VAC
CRI: >80
Lumens: 35,000
Model Number: EL-MS-SL05-300W27VXXKD T3
Size: 26.6"x12.25"x6.97"
Wattage: 300
Color Temp (CCT): 4000K, 5000K
Input Voltage: 120-277VAC
CRI: >80
Lumens: 42,000

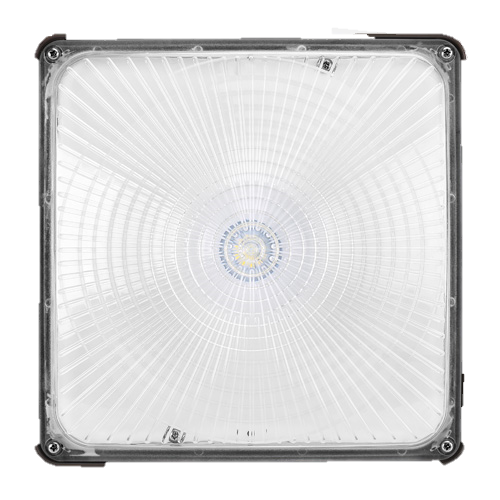

LED Canopy: Standard Series
LED Canopy : Standard Series
Model Number: EL-MS-CP-27W27VXXXKD
Size: 9.6"x9.6"x2.9"
Wattage: 27
Color Temp (CCT): 4000K, 5000K
Input Voltage: 100-277VAC
CRI: >80
Lumens: 3,800
Model Number: EL-MS-CP-27W27V40KW
Size: 9.6"x9.6"x2.9"
Wattage: 27
Color Temp (CCT): 4000K
Input Voltage: 100-277VAC
CRI: >80
Lumens: 3,800
Model Number: EL-MS-CP-27W27V50KDD
Size: 9.6"x9.6"x2.9"
Wattage: 27
Color Temp (CCT): 5000K
Input Voltage: 100-277VAC
CRI: >80
Lumens: 3,800
Model Number: EL-MS-CP-40W27VXXXKD
Size: 9.6"x9.6"x2.9"
Wattage: 40
Color Temp (CCT): 3000K, 5000K
Input Voltage: 100-277VAC
CRI: >80
Lumens: 5,450
Model Number: EL-MS-CP-40W27V50KDD
Size: 9.6"x9.6"x2.9"
Wattage: 40
Color Temp (CCT): 5000K
Input Voltage: 100-277VAC
CRI: >80
Lumens: 5,450
Model Number: EL-MS-CP-40W27V50KW
Size: 9.6"x9.6"x2.9"
Wattage: 40
Color Temp (CCT): 5000K
Input Voltage: 100-277VAC
CRI: >80
Lumens: 5,450
Model Number: EL-MS-CP-60W27VXXXKD
Size: 9.6"x9.6"x2.9"
Wattage: 60
Color Temp (CCT): 4000K, 5000K
Input Voltage: 100-277VAC
CRI: >80
Lumens: 8,000
Model Number: EL-MS-CP-60W27V50KDD
Size: 9.6"x9.6"x2.9"
Wattage: 60
Color Temp (CCT): 5000K
Input Voltage: 100-277VAC
CRI: >80
Lumens: 8,000

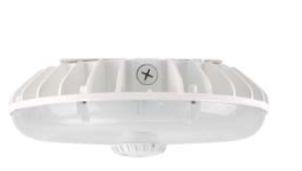

LED Canopy: Round Series
Model Number: EL-MS-CPR-30W27V50KW
Size: 13.03"x3.15"
Wattage: 30
Color Temp (CCT): 5000K
Input Voltage: 120-277VAC
CRI: >80
Lumens: 3,550
Model Number: EL-MS-CPR-45W27V50KW
Size: 13.03"x3.15"
Wattage: 45
Color Temp (CCT): 5000K
Input Voltage: 120-277VAC
CRI: >80
Lumens: 5,500
Model Number: EL-MS-CPR-45W27V50KW EM
Size: 13.03"x3.15"
Wattage: 45
Color Temp (CCT): 5000K
Input Voltage: 120-277VAC
CRI: >80
Lumens: 5,500
Model Number: EL-MS-CPR-60W27V50KW EM
Size: 13.03"x3.15"
Wattage: 60
Color Temp (CCT): 5000K
Input Voltage: 120-277VAC
CRI: >80
Lumens: 7,600
Model Number: LCP-36/50K XE
Size: N/A
Wattage: 36
Color Temp (CCT): 5000K
Input Voltage: 120-277VAC
CRI: >80
Lumens: 4,000
LED Floodlights: Standard Series
Model Number: EL-MS-FL-60W27VDDKDB KN B76
Size: 5.98" x 3.82"
Wattage: 60
Color Temp (CCT): 5000K
Input Voltage: 120-277VAC
CRI: >80
Lumens: 8,000
Model Number: EL-MS-FL-60W27VDDKDB KN B76 PC
Size: 5.98" x 3.82"
Wattage: 60
Color Temp (CCT): 5000K
Input Voltage: 120-277VAC
CRI: >80
Lumens: 8,000
Model Number: EL-MS-MFL-15W27VDDKD B77 KN
Size: 5.98" x 3.82"
Wattage: 15
Color Temp (CCT): 5000K
Input Voltage: 120-277VAC
CRI: >80
Lumens: 2,000
Model Number: EL-MS-MFL-45W27V30KD B77 KN
Size: 6.48" x 3.82"
Wattage: 45
Color Temp (CCT): 3000K
Input Voltage: 120-277VAC
CRI: >80
Lumens: 6,000
Model Number: EL-MS-FL-60W27VDDKDB TR B76
Size: 5.98" x 3.82"
Wattage: 60
Color Temp (CCT): 4000K, 5000K
Input Voltage: 120-277VAC
CRI: >80
Lumens: 8,000
Model Number: EL-MS-FL-27W27VDDKDB TR B76
Size: 6.48" x 3.82"
Wattage: 27
Color Temp (CCT): 5000K
Input Voltage: 120-277VAC
CRI: >80
Lumens: 3,600
Model Number: EL-MS-FL-45W27VDDKDW TR B76
Size: 6.48" x 3.82"
Wattage: 45
Color Temp (CCT): 5000K
Input Voltage: 120-277VAC
CRI: >80
Lumens: 6,000
Model Number: EL-MS-MFL-45W27VDDKD B77 TR
Size: 6.48" x 3.82"
Wattage: 45
Color Temp (CCT): 3000K
Input Voltage: 120-277VAC
CRI: >80
Lumens: 6,000
Model Number: EL-MS-FL-100W27VDDKDB YK B76
Size: 11.06' x 6.08"
Wattage: 100
Color Temp (CCT): 3000K
Input Voltage: 120-277VAC
CRI: >80
Lumens: 13,300

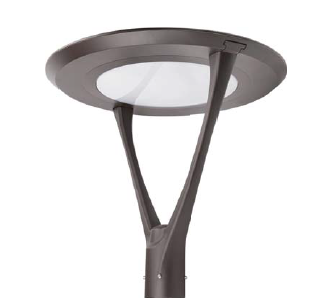

LED Post Top: Standard Series
Model Number: EL-RL-ACC-PMA4SF
Size: 24.3"x25.2"
Wattage: N/A
Color Temp (CCT): N/A
Input Voltage: N/A
CRI: N/A
Lumens: N/A
Model Number: EL-RL-PT100W-DW50-BL
Size: 24.3"x25.2"
Wattage: 100
Color Temp (CCT): 5000K
Input Voltage: 120-277VAC
CRI: N/A
Lumens: 13,000
Model Number: EL-RL-PT70W-DW50-BL
Size: 24.3"x25.2"
Wattage: 70
Color Temp (CCT): 5000K
Input Voltage: 120-277VAC
CRI: N/A
Lumens: 8500
Model Number: EL-RL-PT75W-DW50-BL
Size: 24.3"x25.2"
Wattage: 75
Color Temp (CCT): 5000K
Input Voltage: 120-277VAC
CRI: N/A
Lumens: 9000
Model Number: EL-RL-PTS-100W-DW50-DB
Size: 24.3"x25.2"
Wattage: 100
Color Temp (CCT): 5000K
Input Voltage: 120-277VAC
CRI: N/A
Lumens: 13,000
Model Number: EL-RL-PTS-170W-DW50-DB
Size: 24.3"x25.2"
Wattage: 170
Color Temp (CCT): 5000K
Input Voltage: 120-277VAC
CRI: N/A
Lumens: 21,250

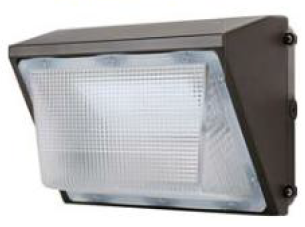

LED Wall Pack: Standard Series
LED Wall Pack : Standard
Model Number: EL-MS-WP-45W27V-40KD
Size: 14.21" x 9.25"
Wattage: 45
Color Temp (CCT): 4000K
Input Voltage: 120-277VAC
CRI: >80
Lumens: 4,950
Model Number: EL-MS-WP-45W27V-40KW
Size: 14.21" x 9.25"
Wattage: 45
Color Temp (CCT): 4000K
Input Voltage: 120-277VAC
CRI: >80
Lumens: 4,950
Model Number: EL-MS-WP-65W27VDDKD
Size: 14.21" x 9.25"
Wattage: 65
Color Temp (CCT): 3000K, 4000K, 5000K
Input Voltage: 120-277VAC
CRI: >80
Lumens: 9,450
Model Number: EL-MS-WP-95W48V-50KD
Size: 14.21" x 9.25"
Wattage: 95
Color Temp (CCT): 5000K
Input Voltage: 347 - 480VAC
CRI: >80
Lumens: 12,300
LED Wall Pack : Full Cutoff
Model Number: EL-LT-WPF-15-DW50-DB
Size: 14.21" x 9.25"
Wattage: 15
Color Temp (CCT): 5000K
Input Voltage: 120-277VAC
CRI: >80
Lumens: 115 lm/w
Model Number: EL-LT-WPF-37-DW50-DB
Size: 14.21" x 9.25"
Wattage: 37
Color Temp (CCT): 5000K
Input Voltage: 120-277VAC
CRI: >80
Lumens: 115 lm/w
Model Number: EL-LT-WPF-74-DW50-DB
Size: 14.21" x 9.25"
Wattage: 74
Color Temp (CCT): 5000K
Input Voltage: 120-277VAC
CRI: >80
Lumens: 115 lm/w
Model Number: EL-MS-WPF-45W27V-30KW
Size: 14.21" x 9.25"
Wattage: 45
Color Temp (CCT): 3000K
Input Voltage: 120-277VAC
CRI: >80
Lumens: 6,100
Model Number: EL-MS-WPF-45W27V-40KD PC/MS/EM
Size: 14.21" x 9.25"
Wattage: 45
Color Temp (CCT): 4000K
Input Voltage: 120-277VAC
CRI: >80
Lumens: 6,100
Model Number: EL-MS-WPF-45W27V-50KD EM
Size: 14.21" x 9.25"
Wattage: 45
Color Temp (CCT): 5000K
Input Voltage: 120-277VAC
CRI: >80
Lumens: 6,100
Model Number: EL-MS-WPF-45W27V-50KD PC/MS/EM
Size: 14.21" x 9.25"
Wattage: 45
Color Temp (CCT): 5000K
Input Voltage: 120-277VAC
CRI: >80
Lumens: 6,100
Model Number: EL-MS-WPF-45W27V-50KW
Size: 14.21" x 9.25"
Wattage: 45
Color Temp (CCT): 5000K
Input Voltage: 120-277VAC
CRI: >80
Lumens: 6,100
Model Number: EL-MS-WPF-70W27V-50KD
Size: 14.21" x 9.25"
Wattage: 70
Color Temp (CCT): 5000K
Input Voltage: 120-277VAC
CRI: >80
Lumens: 9,450
Model Number: EL-MS-WPF-70W27V-50KSG
Size: 14.21" x 9.25"
Wattage: 70
Color Temp (CCT): 5000K
Input Voltage: 120-277VAC
CRI: >80
Lumens: 9,450
Model Number: EL-MS-WPF-70W27V-50KW
Size: 14.21" x 9.25"
Wattage: 70
Color Temp (CCT): 5000K
Input Voltage: 120-277VAC
CRI: >80
Lumens: 9,450
Model Number: EL-MS-WPF-90W27V-50KD
Size: 14.21" x 9.25"
Wattage: 90
Color Temp (CCT): 5000K
Input Voltage: 120-277VAC
CRI: >80
Lumens: 12,300
Model Number: EL-MS-WPF-95W48V-50KD
Size: 14.21" x 9.25"
Wattage: 95
Color Temp (CCT): 5000K
Input Voltage: 347 - 480VAC
CRI: >80
Lumens: 12,300
LED Jelly Jar Fixture
Model Number: EL-LT-VR-20W-DW50-WM
Size: 11.2"x5.5"
Wattage: 20
Color Temp (CCT): 5000K
Input Voltage: 120-277VAC
CRI: >80
Lumens: 1,480
Comments: Use designation shown
