Drivers & Controls
| Category | Model Number | Product Photo | Input Voltage | Description | Detection | Sensing Type | Maximum Mounting Height | IP Rating | Certification | Compatibility | Comments |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Control Options: Bluetooth Commissioning | |||||||||||
| Fixture / Zone Controller | PPA104S |
 |
120-277VAC | 20A Relay Power Pack Bluetooth Commissioning 0-10V Dimming | / | / | / | 20 | cULus | Any dimmable product. | Must be used together with corresponding Bluetooth Commissioning Controls.
Can be controlled using Keilton User Commissioning App |
| Motion Sensor | EFS104 |
 |
120-277VAC | Side-Mount Sensor Fixture - External | Daylight Harvesting + Motion | PIR | 40FT | 66 | cULus | ||

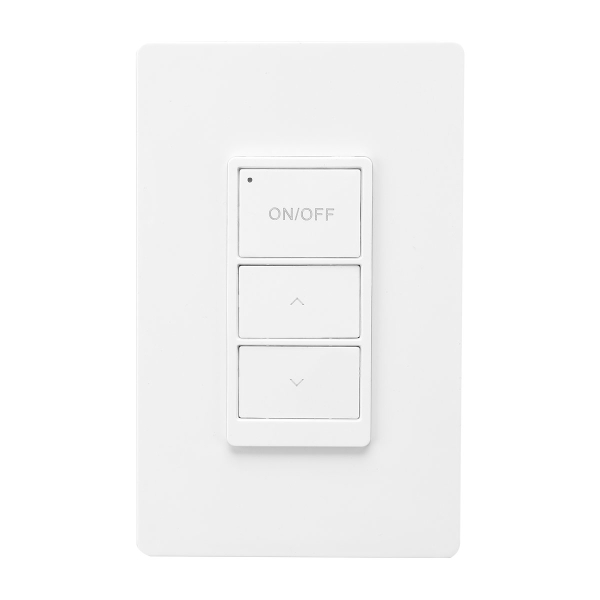

| Wall Switch | WP1013 |
 |
CR20232x2 Batteries | 3-Key Wireless Wall Switch Bluetooth Commissioning | / | / | / | 20 | cULus | ||
| WP1013S |
 |
120-277VAC | 3-Key AC Wireless Wall Switch | / | / | / | 20 | cULus | |||
| Control Options: Sensors & Remotes | |||||||||||
| Sensors | EL-ZY-ANT5-4-MS |
 |
12V-24DC | Plug-In Motion Sensor | Daylight Harvesting + Motion | Bi-Level Microwave | 40FT | 65 | cULus | Round High Bay: Standard Series Linear High Bay: Standard Series | Requires "EL-MS-RC-100" remote to program. See line 16. |
| EL-MS-BRI819P-B-O |
 |
120-277VAC | ON/OFF Motion Sensor | Motion | PIR | 25FT | 20 | cULus | Any dimmable product. | Can be programmed via dipswitches or with "EL-MS-RC-100". See line 16. Sensor is mounted externally |
|
| EL-MS-BRI819P-B-D |
 |
120-277VAC | 0-10V Dimming Motion Sesnor | Motion | PIR | 25FT | 20 | cULus | |||
| EL-AC-ACC-AMS02 |
 |
12V DC | 0-10V Dimming Motion Sesnor | Motion | Bi-Level Microwave | 40FT | 65 | cULus | Round High Bay: High Power Series Round High Bay: Smart Series Linear High Bay: Smart Series Linear Fixture: Tri-Proof Series |
Must be used in conjuction with "EL-AC-ACC-A-RM02" remote. | |
| EL-MS-BRI823 |
 |
120-277VAC | Integrated Sensor - Outdoor Fixture | Daylight Harvesting + Motion | PIR | 40FT | 66 | cULus | Area Light: Standard Series Post Top: Standard Series |
Installed internally | |
| Remotes | EL-MS-RC-100 |
 |
2x AAA Battery | Remote Control for Motion Sensor | Daylight Harvesting + Motion | PIR | Upload: 50FT | / | / | EL-ZY-ANT5-4-MS EL-MS-BRI819P-B-O EL-MS-BRI819P-B-D |
Battery not included |
| EL-AC-ACC-A-RM02 |
|
2x AAA Battery | Remote Control for AMS02 Motion Sensor | Daylight Harvesting + Motion | PIR | Upload: 50FT | / | / | EL-AC-ACC-AMS02 Linear High Bay: Smart Series Round High Bay: Smart Series |
Battery not included | |
| Control Options: Photocell | |||||||||||
| Photocell | EL-MS-WP-Photocell |
 |
120-277VAC | Integranted Standard Photocell | Photocell | / | / | 65 | Canopy: Standard & Round Series Floodlight: Standard Series Wall Pack: All Series |
||
| EL-MS-ACC-SL-Photocell 120-277V |
 |
120-277VAC | Integranted Standard Photocell | Photocell | / | / | 65 | LED Area Lights | |||
| EL-MS-ACC-SL-Photocell 480VAC |
 |
347-480VAC | Integranted Standard Photocell | Photocell | / | / | 65 | ||||
| Driver Options: Emergency Battery Backup | |||||||||||
| Emergency Backup Battery | EL-U-HB-EM |
 |
100-347VAC | Rugby Version Emergency Battery Backup Input Power: 15W Output Power: 30W Discharge Time: 90 minutes |
/ | / | / | 65 | cULus | Any hanging or pendant mounted fixture | |
| EL-ZY-EM-BLD-YT15D |
 |
100-347VAC | Standard Emergency Backup Battery Input Power: 12W Output Power: 15W Discharge Time: 90 minutes |
/ | / | / | 65 | cULus | LED Troffers LED Panels LED Linear High Bays LED Linear Fixtures |
Remote Control Test Capatbilites | |
| EL-ZY-EM-BLD-YT08D |
|
100-347VAC | Standard Emergency Backup Battery Input Power: 7W Output Power: 8W Discharge Time: 90 minutes |
/ | / | / | 65 | cULus | |||
