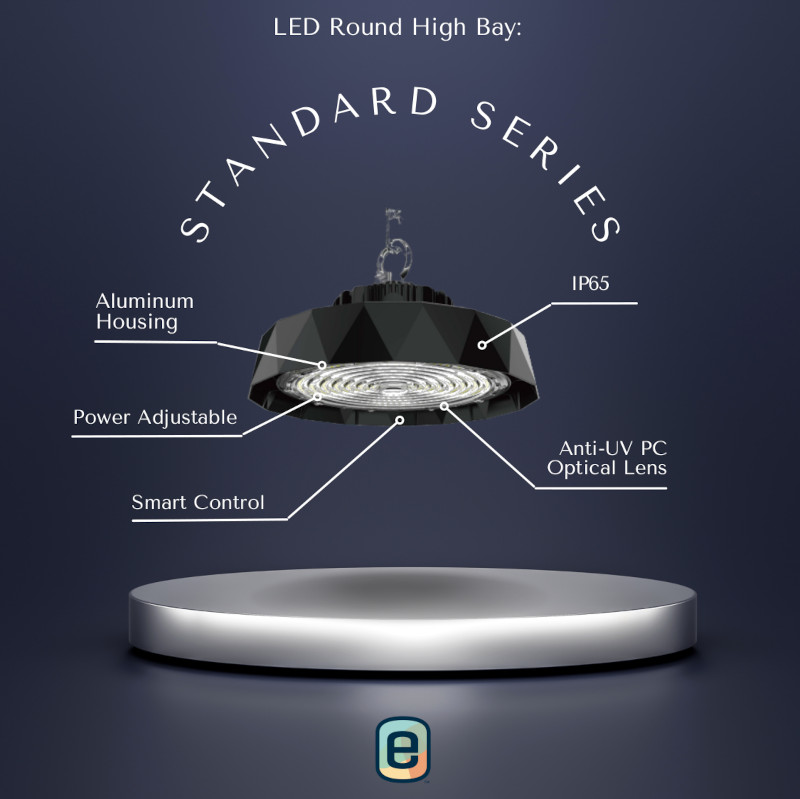

Emium Halo High Bay

EL-GL High Bay Light with 3 different light housing choices

Emium GL Halo High Bay fixtures are the ideal choice for manufacturing and processing facilities, cold storage facilities, sports arenas, distribution centers, and other similar environments requiring extraordinary performance and durability.

Photometric studies and analysis show that the performance of our 100W LED GL fixture exceeds the illumination from a 400W metal halide HID high bay...using only 25% of the energy.

Their IP65 rating makes them impervious to the elements (water, dust, insects, etc.).

The Emium GL Halo High Bay is engineered to install very simply and make the transition from HID or fluorescent lighting very cost-effective.

  • Reduce energy consumption and operating costs by 70% or more
  • Maintenance free operation – lasts up to 10 to 20 times longer than conventional lighting
  • No UV or IR and no RF interference
  • Environmentally friendly – fully recyclable, no mercury or other hazardous material
  • Listed on the DLC Qualified Products List
  • 10 year warranty

Certifications & Ratings

  • RoHS, ETL, CE, FCC
  • DLC – Designlights Consortium
  • IP 65

Features & Benefits

  • CRI > 84 Ra
  • L70 rated for >100,000 hours
  • 10 year full performance warranty
  • Input Voltage 100-277VAC or 200-480VAC
  • Operating Temperature -30°F to 150°F
  • Over voltage/current/temperature shut down with auto recovery
  • Dimmable option 0 - 10V
  • Maintenance free
  • Cast AL1070, 99.7% aluminum housing
  • Multiple beam angle and color temperature options
  • Other options include black or white finish, protective wire guard, frosted lens, reflector housing


Model EL-GL-HB100 EL-GL-HB150 EL-GL-HB200 EL-GL-HB240
Power 100W 150W 200W 240W
Lumen Output 15,000 22,500 30,000 36,000
Beam Angle 120° or 90°
Input Voltage 100 - 277VAC or 347 - 480VAC
CRI > 84 Ra
Color Temp 3000K 4000K 5000K
Physical Diameter - 10.25"
Height - 5.75"
Weight: 7.7 lbs.
Diameter - 11.4"
Height - 6.6"
Weight: 11.9 lbs.
Housing Cast aluminum with black or white powder coat finish
High transparency tempered glass
Operating Temp -40°F to 122°F
Protection Over voltage, over current, over temperature
Shut down with auto-recovery
IP Rating IP65
Dimmable Yes
Options Prismatic PC or Aluminum reflector, Wire guard,
Occupancy sensor (motion), Daylight sensor (photocell)
Rated Life 100,000 hrs.

Download Catalog Sheet » Installation Instructions » View Accessories & Controls »
