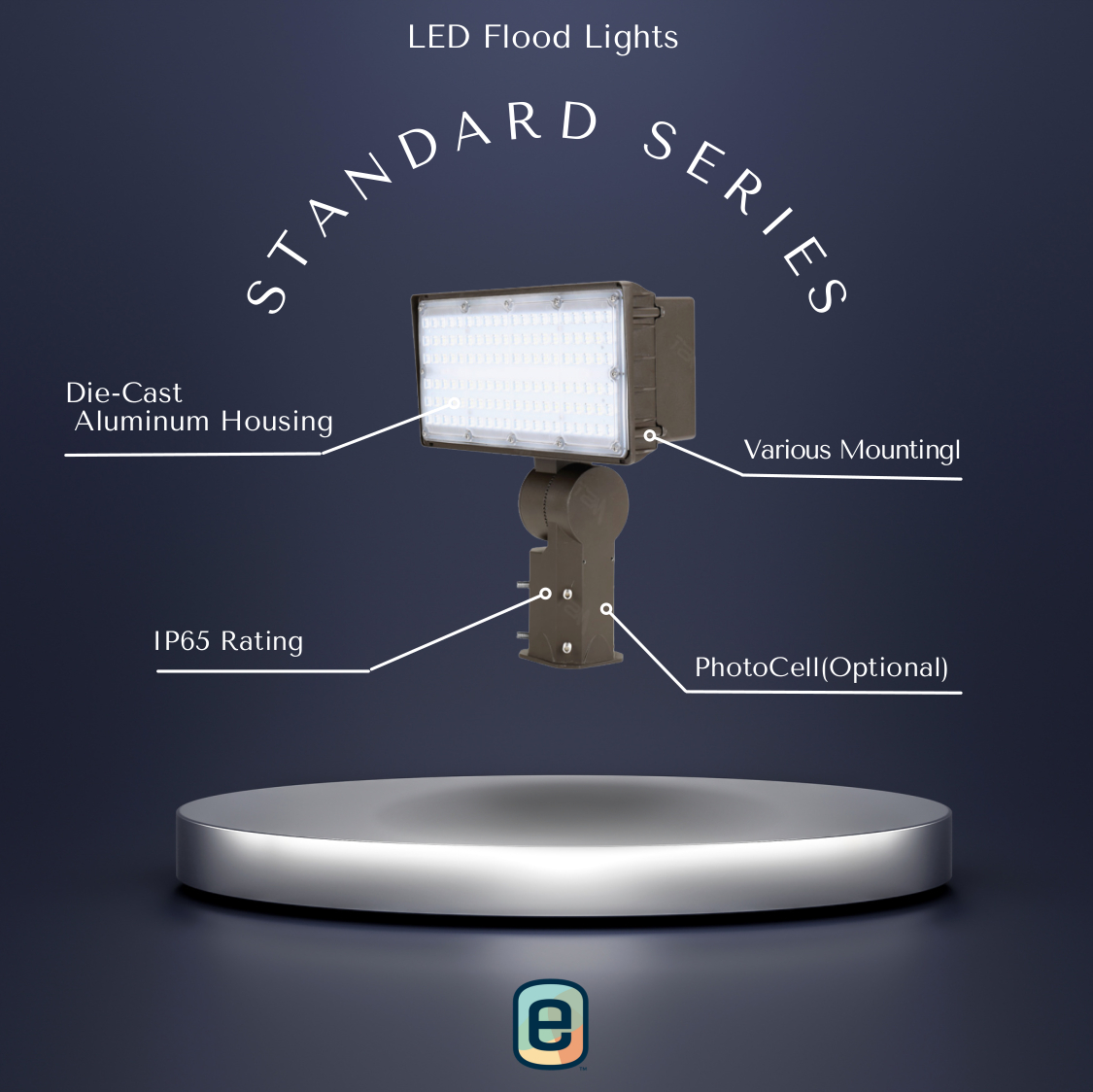

EL-MS-FL Luminaire Commercial LED Flood Lights

Commercial LED Flood Light

The EL-MS-FL luminaire is ideal for lighting public buildings, condominiums, retail and entertainment venues, hotels, commercial signs, landscaping, etc. Flood series offers a high performance energy saving LED lighting solution designed with optical versatility and a slim low profile design. Its rugged watertight IP66 housing makes it impervious to the harshest of environments.


  • Housing is made from die case aluminum that is pre-treated and powder-coated to meet the most rugged industry standards.
  • Door frame features an integral accessory channel for the mounting of optional light control accessories.
  • Vented housing isolates LED module from driver, maximizing product life and performance.
  • Door frame seals to housing with a continuous extruded silicone gasket.


  • Optics(NEMA Type): 7H*6V.
  • Scalable Lumen Packages from 1,950 to 26,000 Lumens.
  • Provides the best combination of vertical and horizontal illumination while reducing light behind the poles.
  • High performance acrylic optic securely attached to internal heat sink for maximum thermal dissipation.
  • 5 Year Full Product Warranty.


Power 15W 27W 45W 60W 70W 100W 135W 200W
Lumen Output 1950 to 2000lm 3550 to 3600lm 5950 to 6000lm 7920 to 8000lm 9250 to 9300lm 13200 to 13300lm 17500 to 17800lm 25600 to 26000lm
Input Voltage 120 - 277VAC or 347 - 480VAC Pine trees with lights shining on them
Controls 0-10V dimming and photo cell available
Beam Angle NEMA - 7H x 6V
Color Temp 3000K   4000K   5000K
Physical Die cast aluminum housing with standard dark bronze finish
Mounting options – Trunnion, Knuckle, Slip-fitter, Yoke
IP Rating IP66
Rated Life 100,000 hrs. Certification Stamp

Download Catalog Sheet »
